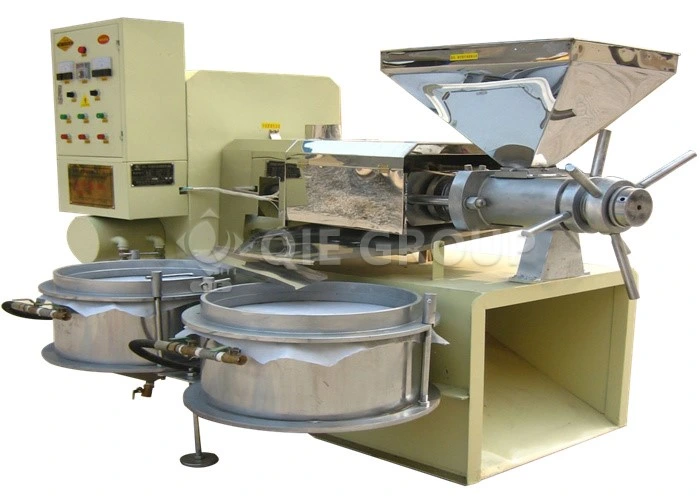

Peanut Oil Press

The peanut oil press is an energy-efficient oil processing equipment, which is widely used in the pressing of peanuts, soybeans, cotton seeds, sunflower seeds, flax seeds, castor and other oil crops. The equipment adopts advanced screw extrusion technology to extract oil from oil by physical pressing, which not only improves the oil yield, but also retains the natural nutrients of oil to the greatest extent. The surface of the machine is stainless steel chrome-plated, which meets food hygiene standards.

Working principle of peanut oil press machine

The screw oil press is mainly composed of electrical control system, automatic heating device, adjustment mechanism, transmission parts and vacuum oil filtration system.

During operation, peanuts are fed into the pressing chamber from the hopper. Under the rotation of the spiral shaft, the peanut embryos are continuously squeezed inward for pressing. The oil press uses the technical principle of multi-stage progressive pressure increase, which can quickly increase the pressure in the pressing chamber, prompting the peanut embryos to complete fission and separation in one go. Subsequently, with the help of an infrared temperature control system, the temperature and moisture content during the pressing process are automatically regulated to fully soften the oil and activate the oil molecules. In this process, the pressing process is stable and efficient, and sufficient oil can be produced in one pressing, significantly improving the oil yield.

Outstanding advantages of peanut oil press

1. The peanut oil press adopts the discharge design, which significantly reduces the gap between the oil lines and effectively increases the pressure in the pressing chamber, thereby increasing the oil yield.

2. The spiral peanut oil press is equipped with an electronic temperature control system, which can accurately control the temperature of the pressing chamber, so that it is always in the best oil output state, thereby improving the oil output rate.

3. The oil press can flexibly adjust the pressing temperature according to different pressing raw materials to fully ensure the quality of the raw materials.

4. The peanut oil press has a one-time pressing function and can control the thickness of the pressed oil cake by adjusting the pressing chamber pressure.

5. The peanut oil press is equipped with a vacuum oil filter device, which can complete the filtration simultaneously during the oil pressing process, greatly improving the oil pressing efficiency.

6. The machine is made of high-strength materials with high hardness, high strength and good wear resistance. It is suitable for continuous operation under high temperature and high pressure, ensuring long-term and stable operation of the equipment.

7. The oil press provides a variety of models for customers to choose from, and customers can make reasonable selections based on their own production needs.

QIE is a manufacturer specializing in the R&D, design and production of peanut oil presses in China with many years of production experience. We provide customers with first-class production equipment and after-sales service. Our oil presses have been exported to many countries and regions around the world. Welcome customers to consult and purchase.
